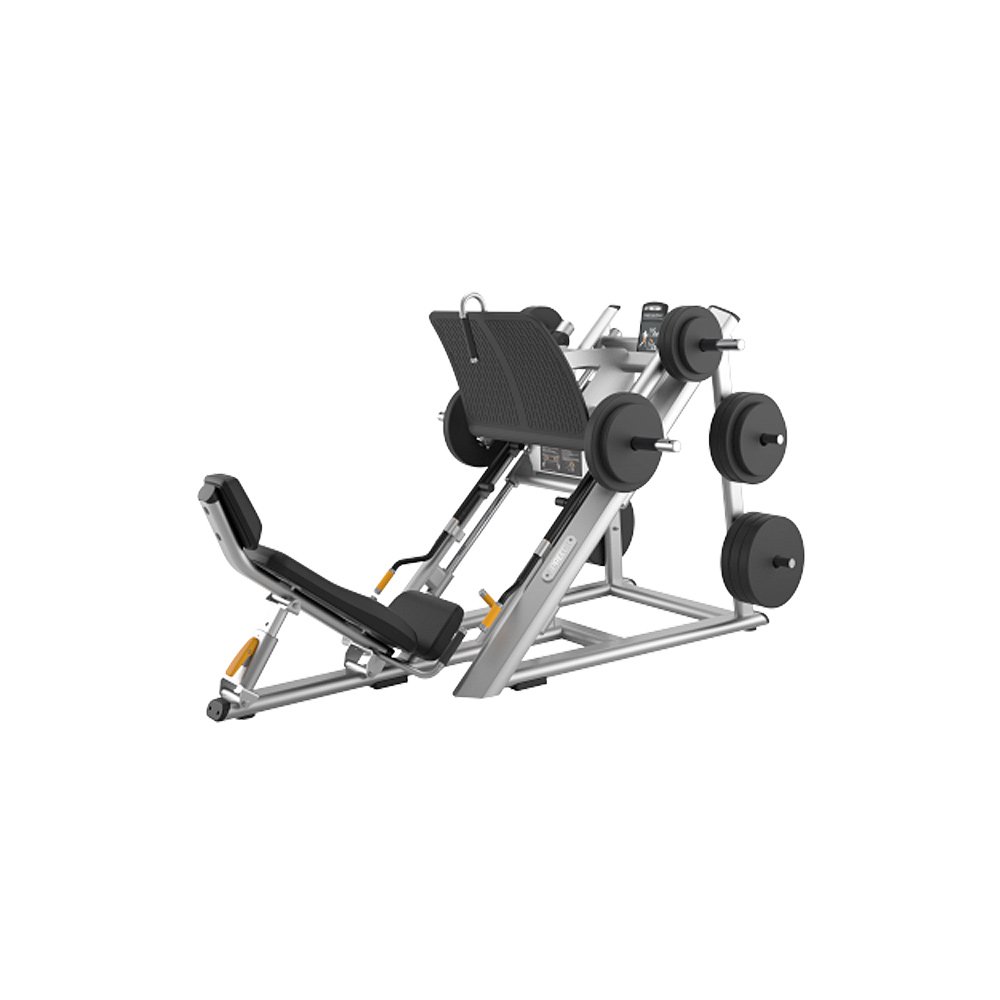

Preowned Precor Plate-Loaded Angled Leg Press
DPL0601
The Discovery™ Series Plate Loaded Angled Leg Press features a 45 degree angle and a three position, anatomically optimized seat design for precise body positioning and support. The four Footplate Carriage weight horns allow for easy loading of weight plates and a unique, oversized curved foot platform supported by four high load rated linear bearings result in an incredibly solid, smooth and secure user experience.
DPL0601
The Discovery™ Series Plate Loaded Angled Leg Press features a 45 degree angle and a three position, anatomically optimized seat design for precise body positioning and support. The four Footplate Carriage weight horns allow for easy loading of weight plates and a unique, oversized curved foot platform supported by four high load rated linear bearings result in an incredibly solid, smooth and secure user experience.
DPL0601
The Discovery™ Series Plate Loaded Angled Leg Press features a 45 degree angle and a three position, anatomically optimized seat design for precise body positioning and support. The four Footplate Carriage weight horns allow for easy loading of weight plates and a unique, oversized curved foot platform supported by four high load rated linear bearings result in an incredibly solid, smooth and secure user experience.
Standard Features
Plate Storage Pins
Ratcheting Back Pad
Upholstery Premium-quality upholstery with Beautyguard protective topcoat finish. Fabric meets or exceeds California fire regulations (Bulletin 117, section E). Double-layer slipcover in appropriate high wear areas. Double stitching on all seams.
Instructional Placard Yes
Adjustments Two (2) Carriage stop positions; three (3) seat position angles
Frame and Finish Oversized tubes are 11-gauge steel and fully welded in all structural areas. Powder coated frames.
Bolt Down Capability Yes
Equipment Specifications
Standard Color- Carriage Metallic Ash
Standard Frame / Movement Arm or Carriage Colors
Frame: Black Pearl; Movement Arm: Metallic Ash
Frame: Gloss Metallic Silver; Movement Arm: Metallic Ash
Stocked Upholstery Colors All Spice, Black, Grey
Additional Upholstery Options (Additional lead time applies) American Beauty, Blue Jay, Burgundy, Deep Clay, Hunter Green, Navy, New Purple, Regal Blue, Slate
Max Load Weight 1080 lb / 490 kg
Weight Storage Horns 4
Starting Weight 136 lb / 62 kg
Equipment Dimensions and Weight
Length 94 inches / 239 cm
Width 55 inches / 140 cm
Height 56.5 inches / 144 cm
Equipment Weight 556 lb / 252 kg
